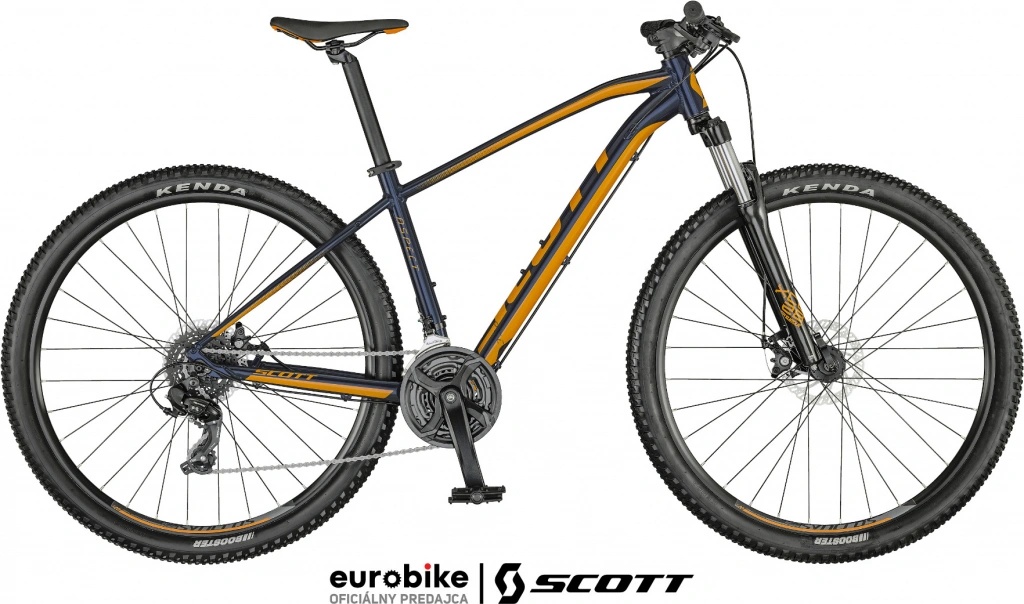

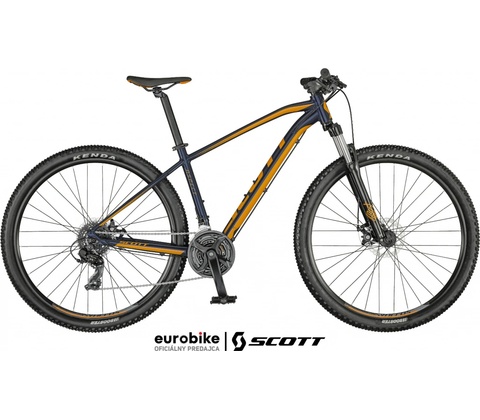

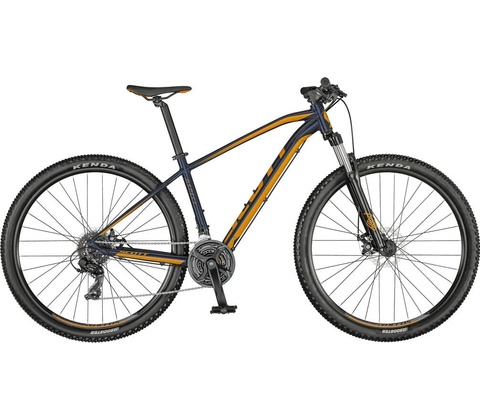

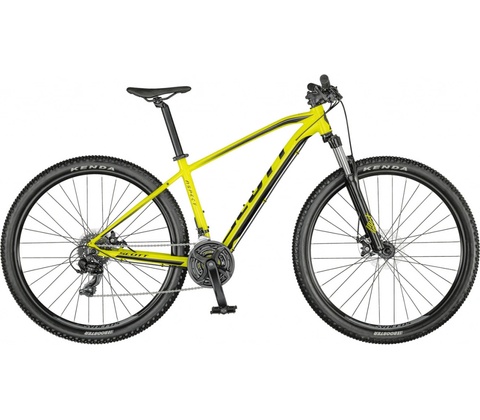

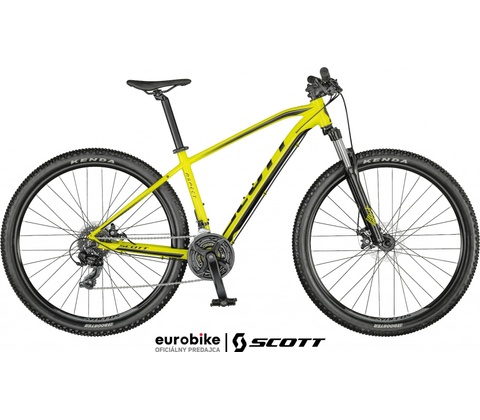

Scott Aspect 970 2021

ŠPECIFIKÁCIA:

Rám

Aspect 900-700 series / Alloy 6061 Custom Tubing

BSA73 / Internal Cable Routing / replaceable hanger

Vidlica

Suntour XCE28 100mm travel

Prehadzovač

Shimano Tourney RD-TY300 21 Speed

Prešmyk

MicroShift FD-M20 / 31.8mm

Radenie

Shimano ST-EF-41-L / 7R

EZ-fire plus w/gear indicator

Kľuky

Prowheel TA-CQ01 42x34x24 w/CG

Stredové zloženie

Feimin FP.B902

BB73 / square taper

Reťaz

KMC Z-7

Kazeta

Sunrace CSM40 7AV / 11-34T

Brzdy

Tektro SCM-02 Mech. Disc

Brzdový kotúč

Tektro / 6 bolt / F&R 160mm

Riadidlá

HL MTB-AL-312BT / 720mm / black / 12mm rise

Sncros Pro Grip

Predstavec

TDS-C301-8FOV / 10° / 31.8 / Black

Sedlovka

HL SP C207 31.6mm / 350mm / Black

Sedlo

Syncros 3.0

Hlavové zloženie

Syncros OE Press Fit / 1 1/8"

OD 50mm / ID 44mm

Náboj (predný)

Formula DC-19 FQR Disc

Náboj (zadný)

Formula DC-27A 7s RQR Disc

Špice 14 G / stainless / black

Ráfiky

Syncros X-20 Disc 32H / black

Predný plášť

Kenda Booster 2.4" / 30TPI

Zadný plášť

Kenda Booster 2.4" / 30TPI

Pedále

Feimin FP-803

Približná hmotnosť v Kg 14.95   .

GEOMETRIA:

XS

S

M

L

XL

XXL

A

HEAD TUBE ANGLE         68.5 °   68.5 °   68.5 °   68.5 °   68.5 °   68.5 °

B

HEAD TUBE LENGTH         95.0 MM 100.0 MM 110.0 MM 120.0 MM 135.0 MM 150.0 MM

C

TOP TUBE HORIZONTAL         560.0 MM 585.0 MM 600.0 MM 615.0 MM 635.0 MM 655.0 MM

D

STANDOVER HEIGHT         743.0 MM 771.0 MM 783.0 MM 821.0 MM 857.0 MM 891.0 MM

E

BB OFFSET

• 60.0 MM
• 60.0 MM
• 60.0 MM
• 60.0 MM
• 60.0 MM
• 60.0 MM

F

BB HEIGHT         316.0 MM 316.0 MM 316.0 MM 316.0 MM 316.0 MM 316.0 MM

G

WHEEL BASE         1,102.0 MM 1,090.0 MM 1,102.0 MM 1,123.0 MM 1,144.0 MM 1,164.0 MM

H

BB CENTER TO TOPTUBE CENTER         309.0 MM 349.0 MM 394.0 MM 434.0 MM 484.0 MM 534.0 MM

I

BB CENTER TO TOP OF SEATTUBE         355.0 MM 395.0 MM 440.0 MM 480.0 MM 530.0 MM 580.0 MM

J

SEAT ANGLE         73.5 °   73.5 °   73.5 °   73.5 °   73.5 °   73.5 °

K

CHAINSTAY         450.0 MM 450.0 MM 450.0 MM 450.0 MM 450.0 MM 450.0 MM

L

REACH         388.0 MM 406.0 MM 419.0 MM 431.0 MM 447.0 MM 463.0 MM

M

STACK         580.0 MM 603.0 MM 612.0 MM 622.0 MM 636.0 MM 649.0 MM

N

STEM LENGTH         50.0 MM 60.0 MM 70.0 MM 80.0 MM 90.0 MM 100.0 MM
