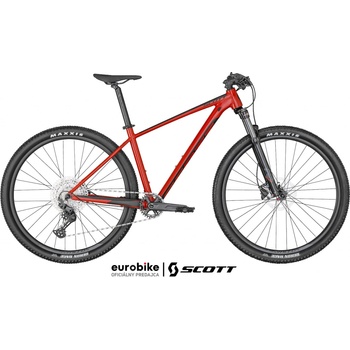

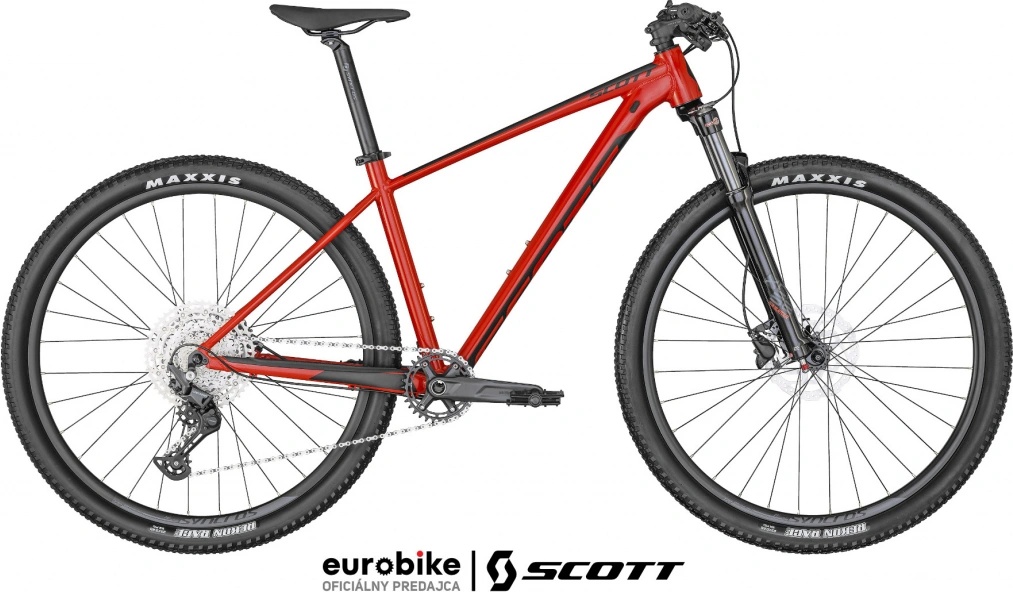

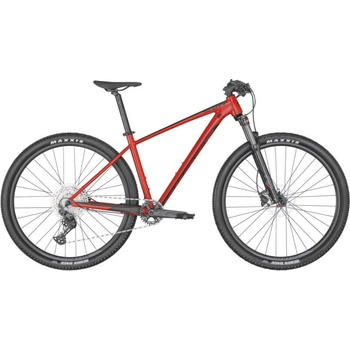

Scott Scale 980 2022

ŠPECIFIKÁCIA:

Rám

Scale Alloy 6061 Custom Butted Tubing

Boost QR 5x141mm / Tapered Headtube / BB92

Internal Cable Routing / replaceable hanger

Vidlica

Suntour X1 32 RL-R / Coil Spring

Tapered Steerer / Reb. Adj.

Remote Lockout / 100mm travel

Diaľkový ovládací systém

Suntour Remote

Prehadzovač

Shimano Deore RD-M6100 SGS

Shadow Plus / 12 Speed

Radenie

Shimano Deore SL-M6100-R / Rapidfire Plus

Kľuky

Shimano FC-MT511-1 32T

Stredové zloženie

Shimano BB-MT500-PA / shell 41x89.5mm

Reťaz

KMC X12

Kazeta

Shimano Deore CS-M6100-12 / 10-51 T

Brzdy

Shimano MT200 Disc

Riadidlá

Syncros Alloy 6061

T shape Flat / 9° / 740mm

Predstavec

Syncros Alloy 6061 oversized 31.8mm / 1 1/8" / 6° angle

Sedlovka

Syncros / 31.6x400mm

Sedlo

Syncros Belcarra Regular 2.5

Hlavové zloženie

Syncros OE Press Fit / Reduce 1.5"-1 1/8"

OD 50/62mm / ID 44/56mm

Náboj (predný)

Formula CL-51

Náboj (zadný)

Shimano FH-MT401-B CL / Boost QR 5x141mm / Micro Spline

Ráfiky

Syncros / 32H

Predný plášť

Maxxis Rekon Race / 2.25" / 60TPI

Zadný plášť

Maxxis Rekon Race / 2.25" / 60TPI

Pedále

Femin FP873ZU

Približná hmotnosť v Kg 13.80

GEOMETRIA:

Veľkosť

S

M

L

XL

XXL

A head  angletube              69.5 °   69.5 °   69.5 °   69.5 °   69.5 °

B

HEAD TUBE LENGTH             100.0 MM 100.0 MM 115.0 MM 125.0 MM 135.0 MM

C

TOP TUBE HORIZONTAL             575.0 MM 600.0 MM 620.0 MM 640.0 MM 660.0 MM

D

STANDOVER HEIGHT             748.0 MM 776.0 MM 805.0 MM 840.0 MM 874.0 MM

E

BB OFFSET

• 58.0 MM
• 58.0 MM
• 58.0 MM
• 58.0 MM
• 58.0 MM

F

BB HEIGHT             312.0 MM 312.0 MM 312.0 MM 312.0 MM 312.0 MM

G

WHEEL BASE             1,092.1 MM 1,118.0 MM 1,138.2 MM 1,159.0 MM 1,120.0 MM

H

BB CENTER TO TOPTUBE CENTER

I

BB CENTER TO TOP OF SEATTUBE             390.0 MM 440.0 MM 480.0 MM 530.0 MM 580.0 MM

J

SEAT ANGLE             73.6 °   73.6 °   73.6 °   73.6 °   73.6 °

K

CHAINSTAY             440.0 MM 440.0 MM 440.0 MM 440.0 MM 440.0 MM

L

REACH             396.8 MM 421.8 MM 437.7 MM 455.0 MM 492.2 MM

M

STACK             605.3 MM 605.3 MM 619.4 MM 628.7 MM 638.1 MM
