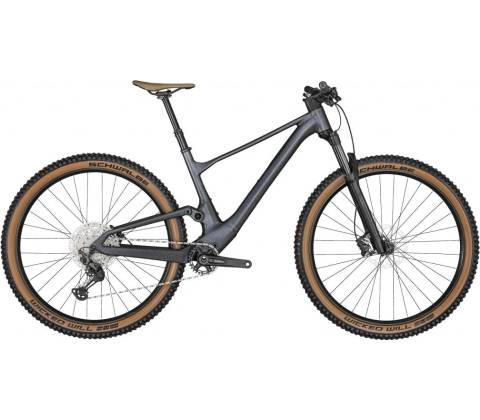

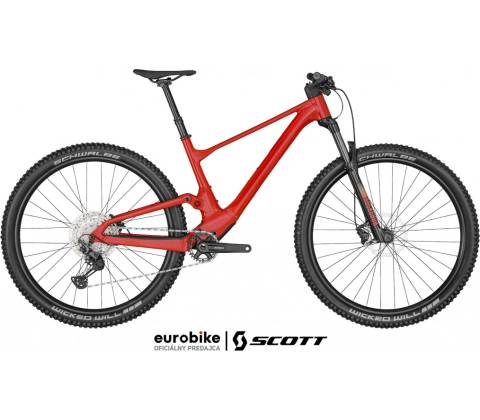

Scott Spark 960 2022

ŠPECIFIKÁCIA:

Rám

Spark Alloy SL 6011

Integrated Suspension Technology

Flex Pivot / Adjustable head angle

Syncros Cable Integration System

BB92 / UDH Interface / 12x148mm with 55mm Chainline

Vidlica

RockShox Judy Silver TK Solo Air 15x110mm QR axle / 42mm offset / Tapered Steerer 2-Modes / Reb. Adj. / Lockout / 130mm travel

Tlmič

X-Fusion NUDE 5 RLX Trunnion

SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend

Reb. Adj.

Travel 120-80-Lockout / T165X45mm

Diaľkový ovládací systém

SCOTT TwinLoc 2 Technology

Suspension & Dropper Remote 3 Suspension modes

Prehadzovačka

Shimano XT RD-M8100 SGS

Shadow Plus / 12 Speed

Radenie

Shimano Deore SL-M6100-R / Rapidfire Plus

Kľuky

Shimano FC-MT512-1 55mm CL / 32T

Stredové zloženie

Shimano BB-MT500 / shell 41x92mm

Reťaz

KMC X12

Kazeta

Shimano Deore CS-M6100-12 / 10-51 T

Brzdy

Shimano MT501 Disc

Brzdový kotúč

Shimano SM-RT54 CL / F&R 180mm

Riadidlá

Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm

Syncros Pro lock-on grips

Predstavec

Syncros DC 3.0

Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8"

Sedlovka

Syncros Duncan Dropper Post 2.5 31.6mm / S & M size 125mm / L & XL size 150mm

Sedlo

Syncros Tofino 2.5 Regular

Hlavové zloženie

Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment

ZS56/28.6 – ZS56/40 MTB

Predný náboj

Shimano HB-MT410-B CL / 15x110mm

Zadný náboj

Shimano FH-MT410-B CL / 12x148mm / Micro Spline

Výplet

Stainless Black 15G / 1.8mm

Ráfiky

Syncros X-30SE / 32H / 30mm

Predný plášť

Schwalbe Wicked Will / 29x2.4"

Performance / TLR / Foldable / Addix

Zadný plášť

Schwalbe Wicked Will 29x2.4"

Performance / TLR / Foldable / Addix

HMmotnosť v Kg 14.95  .

GEOMETRIA:

S

M

L

XL

A

HEAD TUBE ANGLE             65.8 °   65.8 °   65.8 °   65.8 °

B

HEAD TUBE LENGTH             90.0 MM 90.0 MM 105.0 MM 115.0 MM

C

TOP TUBE HORIZONTAL             561.0 MM 589.0 MM 613.0 MM 641.0 MM

D

STANDOVER HEIGHT             759.0 MM 767.0 MM 778.0 MM 801.0 MM

E

BB OFFSET

• 43.5 MM
• 43.5 MM
• 43.5 MM
• 43.5 MM

F

BB HEIGHT             331.5 MM 331.5 MM 331.5 MM 331.5 MM

G

WHEEL BASE             1,145.0 MM 1,174.0 MM 1,205.0 MM 1,236.0 MM

H

BB CENTER TO TOPTUBE CENTER

I

BB CENTER TO TOP OF SEATTUBE             415.0 MM 440.0 MM 490.0 MM 540.0 MM

J

SEAT ANGLE             75.7 °   75.9 °   76.4 °   76.7 °

K

CHAINSTAY             437.5 MM 437.5 MM 437.5 MM 437.5 MM

L

REACH             410.0 MM 440.0 MM 470.0 MM 500.0 MM

M

STACK             607.5 MM 607.5 MM 617.7 MM 627.0 MM

N

STEM LENGTH             50.0 MM 60.0 MM 60.0 MM 70.0 MM

TRAIL             107.0 MM 107.0 MM 107.0 MM 107.0 MM

P

FORK LENGTH             540.0 MM 540.0 MM 540.0 MM 540.0 MM

Q

MAXIMUM SEATPOST INSERTION             150.0 MM 175.0 MM 225.0 MM 275.0 MM

R

CRANK LENGTH             170.0 MM 175.0 MM 175.0 MM 175.0 MM
