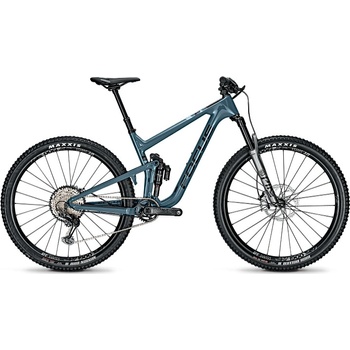

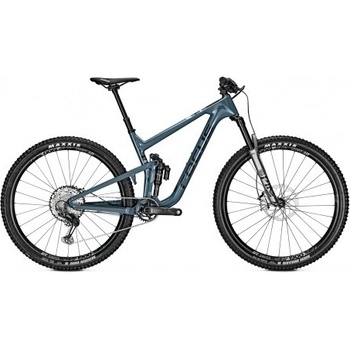

Focus Jam 8.9 Nine 2021

Špecifikácia: .

Rám

Carbon front triangle, 6061 Aluminum rear triangle, 140mm F.O.L.D. kinematic, PF30 BB, 148x12 thru axle, internal cable routing, Post Mount 180 mm

Materiál rámu carbon

Vidlica

Rock Shox Pike Ultimate 29 Boost, Charger 2.1 RCT3, DebonAir, 15x110 mm, 51 mm rake, 140 mm travel

Zdvih vidlice 140 mm

Tlmič

RockShox Super Deluxe Select+, 210/55 mm, hardware: 25 x 8mm, custom tune

Radenie

Shimano XTR M9100, 12-speed

Prehadzovačka

Shimano XTR M9100, 12-speed

Kazeta

Shimano SLX M7100, 12-speed

Reťaz

Shimano SLX CN-M7100

Kľuky

Race Face Next R, carbon

Pedále nie sú súčasťou balenia

Ozubenie vpredu: 32, vzadu: 11-51

Stredové zloženie

Sram PressFit 30

Riadidlá

BBB Ascension BHB-110, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree

Gripy

BBB Python BHG-95

Predstavec

BBB Jumper BHS-137, 31.8mm

Hlavové zloženie

Acros AIX-322, tapered, IS 42/286-IS52/40

Sedlo

FOCUS Trail SL

Sedlovka

Kind Shock RAGE I, 31,6mm

Brzdy

Magura MT Trail HC3, vpredu: 4-piston / vzadu: 2-piston

Brzdové páky

Magura MT Trail

Kolesá

DT Swiss M1900, 622-30, 148x12 mm / 110x15 mm

Predný plášť

Maxxis High Roller II 2.5 3C EXO TR

Zadný plášť

Maxxis Minion DHR II 2.3 Dual EXO TR

Prevody 12

Hmotnosť 13,90 kg

Veľkosti 41-S, 44-M, 47-L, 50-XL   .

Geometria:

S

M

L

XL

SIZE 41 44 47 50

SEAT POST LENGTH (MM) 125 150 170 170

HANDLEBAR WIDTH 780 780 780 780

STEM LENGTH (MM) 55 55 55 55

CRANKARM LENGTH 170 170 170 170

A

SIZE (MM) 420 440 480 510

B

EFFECTIVE TOP TUBE (MM) 585 605 632 657

C

HEAD TUBE ANGLE (°) 67.3 67.3 67.3 67.3

D

EFFECTIVE SEAT TUBE ANGLE (°) 74.2 74.2 74.2 74.2

E

CHAINSTAY (MM) 440 440 440 440

F

BB DROP (MM) 29 29 29 29

G

HEAD TUBE LENGTH (MM) 110 110 140 160

H

FORK LENGTH (MM) 551 551 551 551

I

FORK OFFSET (MM) 51 51 51 51

J

WHEELBASE (MM) 1143 1172 1201 1229

K

STACK (MM) 622 622 645 662

L

REACH (MM) 410 430 450 470
