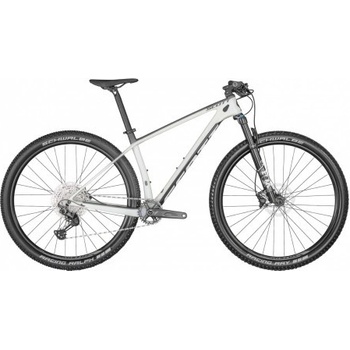

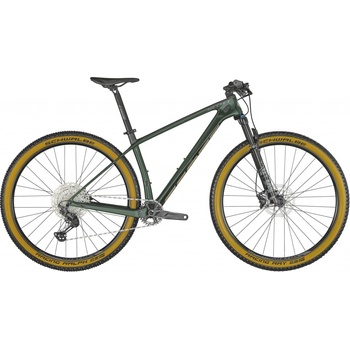

Scott Scale 930 2022

ŠPECIFIKÁCIA:

Rám

Scale 3 Carbon / IMP Technology / HMF

BB92 / SW DM dropouts for Boost 12x148mm

SDS2 advanced Shock & Standing Damping System

ICCR Cable routing

Vidlica

FOX 32 Float Rhythm Grip 3 3-Modes / 15x110mm QR axle / 44mm offset / tapered steerer

Reb. Adj. / Lockout / 100mm travel

Diaľkový ovládací systém

SCOTT RideLoc Technology / below bar remote 3 modes / integ. Grip clamp

Prehadzovačka

Shimano XT RD-M8100 SGS

Shadow Plus / 12 Speed

Radenie

Shimano Deore SL-M6100-R / Rapidfire Plus

Kľuky

Shimano FC-MT511-1 32T

Stredové zloženie

Shimano BB-MT500 / shell 41x92mm

Reťaz

KMC X12

Kazeta

Shimano Deore CS-M6100-12 / 10-51 T

Brzdy

Shimano MT401 Disc

Brzdový kotúč

Shimano SM-RT10 CL / 180/F and 160/R

Riadidlá

Syncros Fraser 2.0 / Alloy 6061

T shape Flat / 9° / 740mm

Syncros Pro lock-on grips

Predstavec

Syncros FL2.0 6° / integrated Spacer & Top Cap 6061 Alloy / 31.8mm / 1 1/8"

Sedlovka

Syncros Duncan 2.0 / 10mm offset 31.6x400mm

Sedlo

Syncros Belcarra Regular 2.5

Hlavové zloženie

Syncros Pro Drop in / Tapered 1.5"-1 1/8"

Bearing diameter size 42mm and 52mm

Náboj (predný)

Formula CL-811 / 15x110mm

Náboj (zadný)

Shimano FH-MT410-B CL / Boost 12x148mm / Micro Spline

Špice

Stainless Black 15G / 1.8mm

Ráfiky

Syncros X-25 / 32H / 25mm

Tubeless ready

Predný plášť

Schwalbe Racing Ray 29x2.25" / Preformance Folding / Addix / TLE Tubeless ready

Zadný plášť

Schwalbe Racing Ralph 29x2.25" / Preformance Folding / Addix / TLE Tubeless ready

Približná hmotnosť v Kg 11.80  .

GEOMETRIA:

S

M

L

XL

A

HEAD TUBE ANGLE             69.5 °   69.5 °   69.5 °   69.5 °

B

HEAD TUBE LENGTH             95.0 MM 100.0 MM 115.0 MM 125.0 MM

C

TOP TUBE HORIZONTAL             575.0 MM 600.0 MM 625.0 MM 650.0 MM

D

STANDOVER HEIGHT             743.0 MM 774.0 MM 800.0 MM 835.1 MM

E

BB OFFSET

• 58.0 MM
• 58.0 MM
• 58.0 MM
• 58.0 MM

F

BB HEIGHT             312.0 MM 312.0 MM 312.0 MM 312.0 MM

G

WHEEL BASE             1,076.4 MM 1,101.8 MM 1,127.9 MM 1,153.7 MM

H

BB CENTER TO TOPTUBE CENTER             325.0 MM 375.0 MM 415.0 MM 465.0 MM

I

BB CENTER TO TOP OF SEATTUBE             390.0 MM 440.0 MM 480.0 MM 530.0 MM

J

SEAT ANGLE             73.6 °   73.6 °   73.6 °   73.6 °

K

CHAINSTAY             425.0 MM 425.0 MM 425.0 MM 425.0 MM

L

REACH             398.7 MM 422.3 MM 443.2 MM 465.5 MM

M

STACK             599.0 MM 603.6 MM 617.7 MM 627.1 MM

N

STEM LENGTH             60.0 MM 70.0 MM 80.0 MM 90.0 MM

TRAIL             83.9 MM 83.9 MM 83.9 MM 83.9 MM
